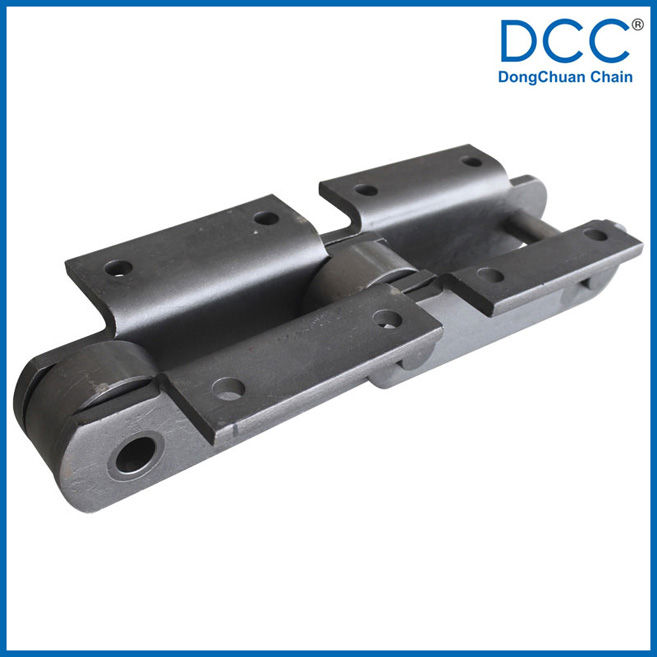

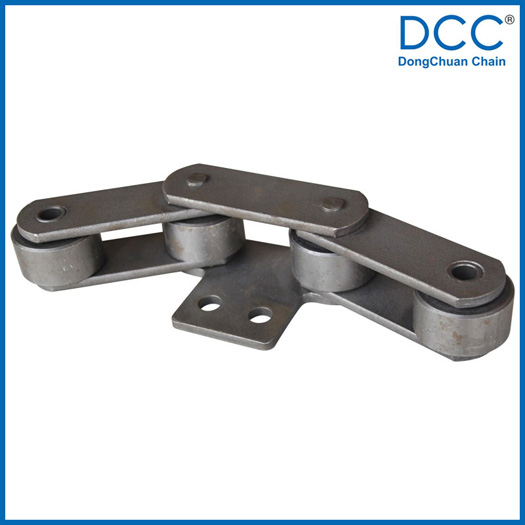

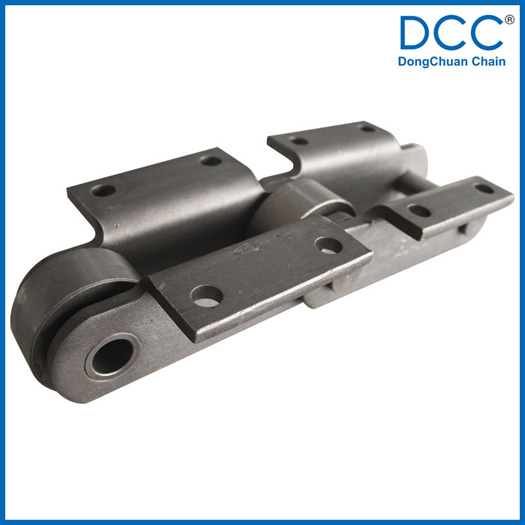

我們對采用甘蔗和甜菜制糖的工序和設備工況有各方面的了解，同時擁有豐富的設計經驗和制造技術，能夠為全球范圍內的制糖工業，從原料、提汁、澄清、蒸發到干燥、篩分、包裝等整個加工系統，提供傳動、提升和輸送用途的專用糖機鏈條。鏈條采用不銹鋼和合金鋼的材質組合，鏈條的銷軸也在表面高頻后再鍍鉻處理，鏈條的抗拉強度和耐磨性非常高，破斷載荷zui小有50KN，zui大能達到620KN。

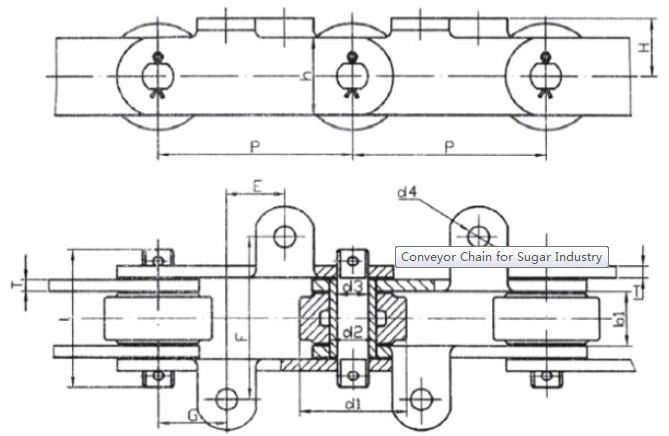

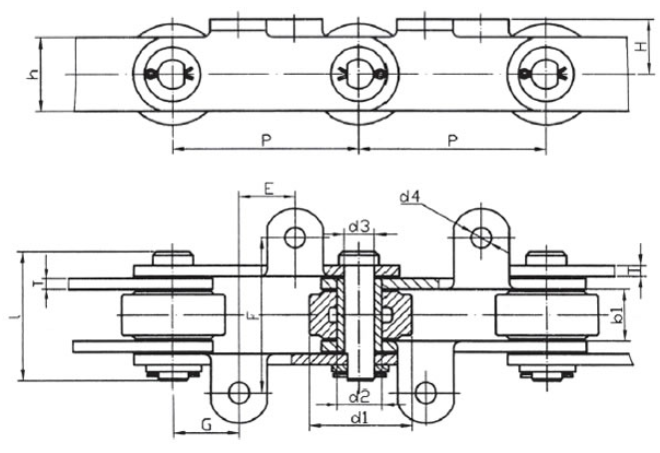

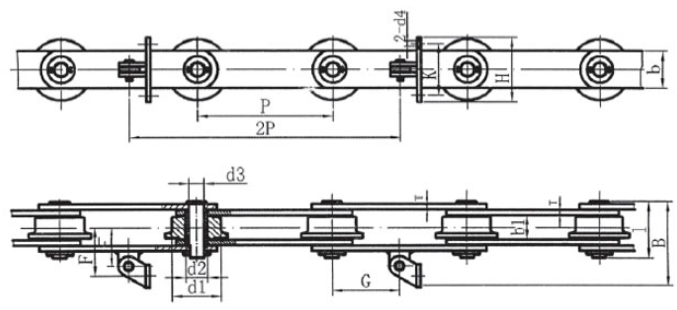

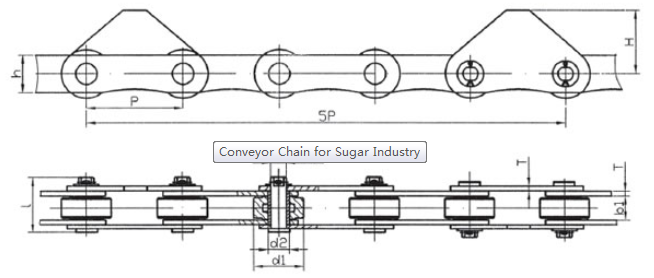

| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||
| E (mm) | F (mm) | G (mm) | H (mm) | d4 (mm) | |||||||||||
| 100 | 55 | 30 | 22 | 16 | 73 | 40 | 6 | 40 | 84 | 30 | 29 | 11 | 80 | 12 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||
| E (mm) | F (mm) | G (mm) | H (mm) | d4 (mm) | |||||||||||
| 100 | 55 | 28 | 24 | 16 | 71 | 40 | 6 | 30 | 84 | 35 | 30 | 11 | 100 | 11 | |

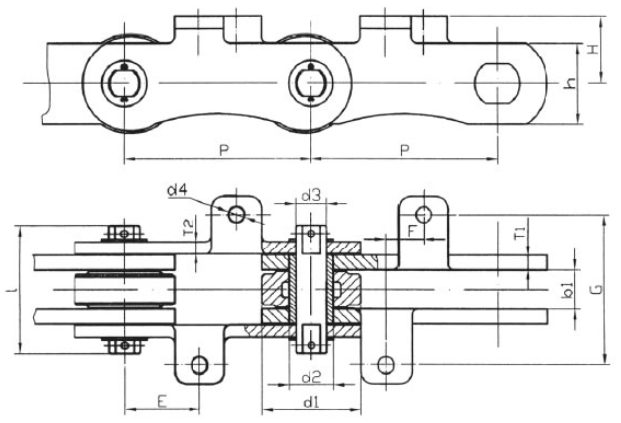

| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | |||||
| T1 (mm) | T2 (mm) | E (mm) | F (mm) | G (mm) | H (mm) | d4 (mm) | ||||||||||
| 150 | 80 | 32 | 36 | 25 | 104 | 65 | 12 | 10 | 60 | 30 | 122 | 55 | 13 | 330 | 24.5 | |
| 150 | 80 | 32 | 36 | 25 | 104 | 65 | 12 | 10 | 60 | 30 | 122 | 55 | 13 | 380 | 24.5 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||
| E (mm) | F (mm) | G (mm) | H (mm) | d4 (mm) | |||||||||||
| 154 | 80 | 32 | 36 | 25 | 100 | 65 | 12 | 57 | 40 | 122 | 53 | 14 | 330 | 27.55 | |
| 154 | 80 | 32 | 36 | 25 | 100 | 65 | 12 | 57 | 40 | 122 | 53 | 14 | 330 | 27.55 | |

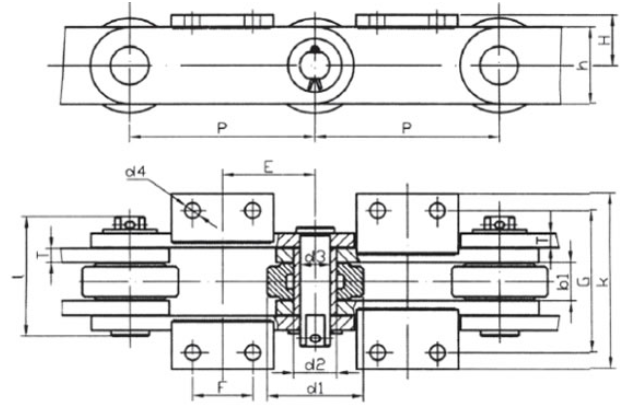

| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | |||||
| E (mm) | F (mm) | G (mm) | H (mm) | k(mm) | d4 (mm) | |||||||||||
| 154 | 80 | 32 | 35 | 25 | 100 | 65 | 12 | 77 | 50 | 120 | 42.5 | 146 | 13 | 330 | 26 | |
| 154 | 80 | 32 | 35 | 25 | 100 | 65 | 12 | 77 | 50 | 120 | 42.5 | 146 | 13 | 380 | 26 | |

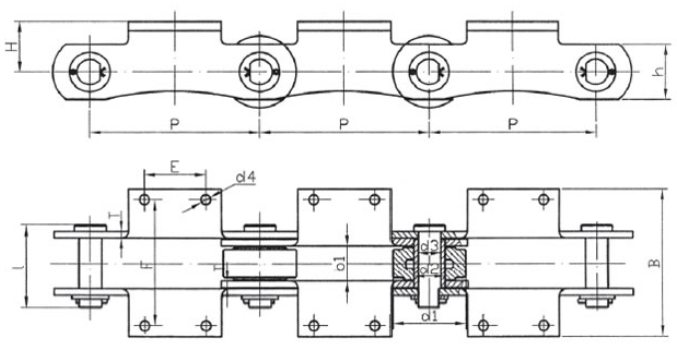

| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||
| E (mm) | F (mm) | B (mm) | H (mm) | d4 (mm) | |||||||||||
| 200 | 100 | 48 | 42 | 30 | 118 | 80 | 12 | 76 | 160 | 200 | 66 | 14 | 440 | 41.25 | |
| 200 | 100 | 48 | 42 | 30 | 118 | 80 | 12 | 76 | 160 | 200 | 66 | 14 | 510 | 41.25 | |

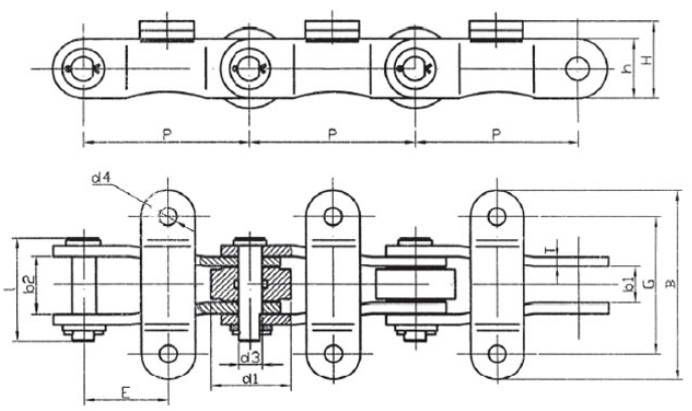

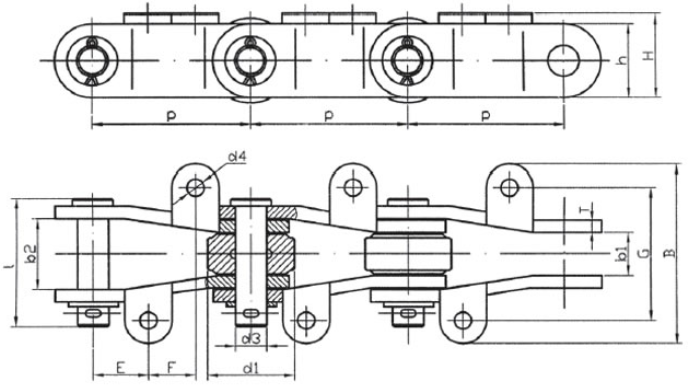

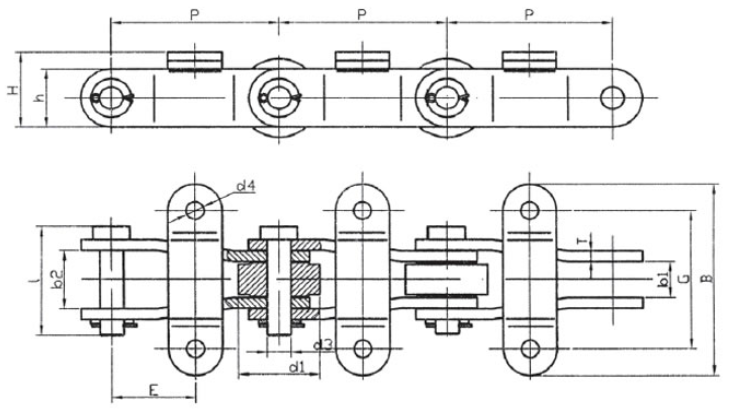

| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Inner width of outer link b2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | |||||
| E (mm) | F (mm) | G (mm) | B (mm) | H(mm) | d4 (mm) | |||||||||||
| 100 | 55 | 28 | 46 | 20 | 80 | 48 | 8 | 35 | 30 | 86 | 116 | 54 | 11 | 160 | 14 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Inner width of outer link b2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||
| E (mm) | G (mm) | B (mm) | H(mm) | d4 (mm) | |||||||||||
| 150 | 80 | 32 | 58 | 25 | 102 | 60 | 12 | 75 | 160 | 210 | 85 | 16.5 | 396 | 31.5 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Inner width of outer link b2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||
| E (mm) | G (mm) | B (mm) | H(mm) | d4 (mm) | |||||||||||
| 154 | 75 | 34 | 56 | 22 | 102 | 56 | 10 | 77 | 130 | 180 | 71.5 | 17 | 278 | 22.5 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | |||
| E (mm) | G (mm) | H(mm) | d4 (mm) | |||||||||||
| 160 | 80 | 32 | 62 | 28 | 110 | 40 | 14 | 64.5 | 160 | 57 | 17 | 620 | 31 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2(mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) |
| H(mm) | |||||||||||
| 125 | 65 | 32 | 28 | 20 | 74 | 50 | 6 | 85 | 120 | 12.79 | |
| 125 | 65 | 32 | 28 | 20 | 82 | 50 | 8 | 85 | 140 | 13.88 |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2(mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) |
| H(mm) | |||||||||||
| 125 | 65 | 32 | 28 | 20 | 74 | 50 | 6 | 85 | 120 | 15.42 | |
| 125 | 65 | 32 | 28 | 20 | 82 | 50 | 8 | 85 | 140 | 17.14 |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) |
| H(mm) | |||||||||||
| 154 | 80 | 32 | 36 | 25 | 100 | 65 | 12 | 95 | 330 | 25.16 | |
| 154 | 80 | 32 | 36 | 25 | 100 | 65 | 12 | 95 | 380 | 25.16 |

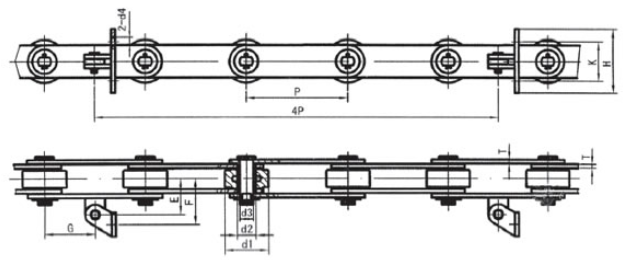

| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||||
| E(mm) | F(mm) | G(mm) | H(mm) | K(mm) | B(mm) | d4(mm) | |||||||||||
| 100 | 55 | 28 | 24 | 16 | 71 | 40 | 6 | 50 | 65 | 50 | 98 | 60 | 116 | 11 | 100 | 10.34 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | |||||
| E(mm) | F(mm) | G(mm) | H(mm) | K(mm) | d4(mm) | |||||||||||
| 150 | 65 | 32 | 28 | 20 | 74 | 50 | 6 | 50 | 65 | 75 | 98 | 60 | 11 | 120 | 11.89 | |

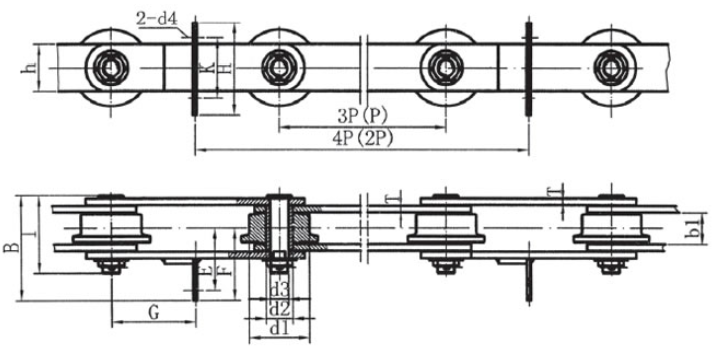

| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin L (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||||
| E(mm) | F(mm) | G(mm) | H(mm) | K(mm) | B(mm) | d4(mm) | |||||||||||
| 250 | 72 | 39 | 32 | 22 | 88 | 56 | 6 | 65 | 80 | 125 | 96 | 60 | 126 | 11 | 160 | 15.75 | |
| 250 | 75 | 38 | 24 | 16 | 76 | 40 | 6 | 55 | 70 | 125 | 130 | 100 | 126 | 13 | 126 | 10.58 | |
| 250 | 72 | 39 | 32 | 22 | 88 | 56 | 8 | 65 | 80 | 125 | 98 | 60 | 126 | 11 | 160 | 13.67 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin I (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||||
| E(mm) | F(mm) | G(mm) | H(mm) | K(mm) | B(mm) | d4(mm) | |||||||||||
| 150 | 65 | 42 | 28 | 20 | 106 | 50 | 8 | 66.5 | 88 | 75 | 140 | 100 | 130 | 12 | 120 | 17.24 | |
| 250 | 90 | 44 | 32 | 22 | 104 | 56 | 8 | 80 | 102 | 125 | 100 | 70 | 131 | 13 | 160 | 17 | |
| Chain No. | Pitch P (mm) | Diameter of roller d1 (min.) (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2 (mm) | Diameter of pin d3 (mm) | Length of pin I (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | |||
| E(mm) | F(mm) | H(mm) | d4(mm) | |||||||||||
| 100 | 45 | 25 | 18 | 12 | 57 | 32 | 4 | 50 | 50 | 27 | 11 | 50 | 5.5 | |

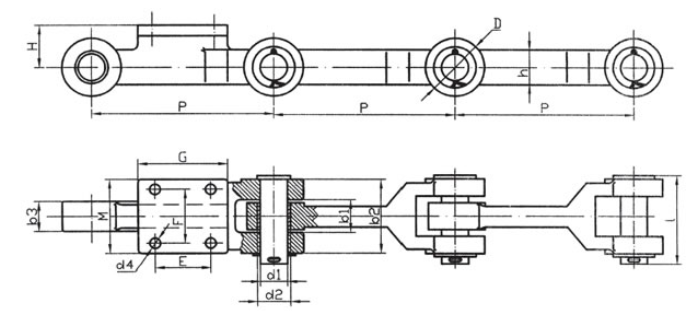

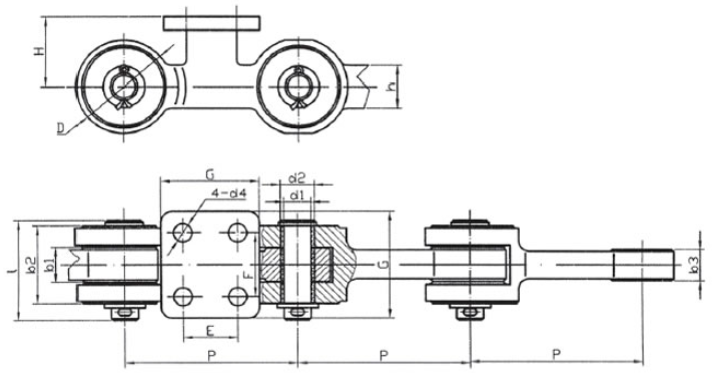

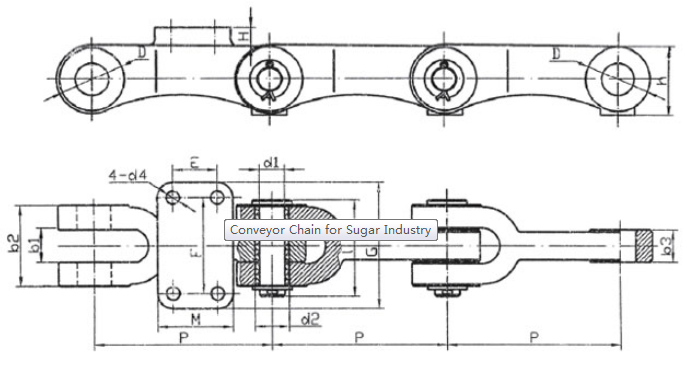

| Chain No. | Pitch P (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2(mm) | Diameter of pin d3 (mm) | Length of pin I (mm) | Height of sidebar h (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | |||||||
| b2(mm) | b3(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | d4(mm) | |||||||||
| 160 | 30 | 31.3 | 25 | 90 | 42 | 70 | 29 | 70 | 50 | 60 | 90 | 60 | 14 | 280 | 21.56 | |
| Chain No. | Pitch P (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2(mm) | Diameter of pin d3 (mm) | Length of pin I (mm) | Height of sidebar h (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||||||
| b2(mm) | b3(mm) | D(mm) | E(mm) | F(mm) | G(mm) | M(mm) | H(mm) | d4(mm) | |||||||||
| 200 | 37 | 38.3 | 28.5 | 115 | 78 | 93 | 36 | 76 | 50 | 110 | 145 | 85 | 19 | 15 | 320 | 35.5 | |
| Chain No. | Pitch P (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of bushing d2(mm) | Diameter of pin d3 (mm) | Length of pin I (mm) | Height of sidebar h (mm) | Other data | Breaking load Q (min.) (KN) | Weight per meter q (kg/m) | ||||||||
| b2(mm) | b3(mm) | D(mm) | E(mm) | F(mm) | M(mm) | G(mm) | H(mm) | d4(mm) | |||||||||
| 304.8 | 56 | 56 | 46 | 152 | 60 | 127 | 51 | 100 | 108 | 85 | 127 | 150 | 72 | 18 | 525 | 42.25 | |
 |  |
| Chain no. | Pitch P (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of pin d3 (mm) | Diameter of roller d1 (min.) (mm) | Height of sidebar h (mm) | Thickness of sidebar T (mm) | Length of pin L (mm) | Central distance of attached plate f(mm) | Hole distance of attached plate L1(mm) | Hole diameter of attached plate d4(mm) | Spanning width of attached plate L2(mm) | Height of attached plate h4(mm) | Tensile strength (KN) |
| 203.2 | 46.1 | 25.4 | 88.9 | 71.4 | 12.7 | 124 | 132.1 | 114.3 | 17.5 | 183.1 | 55.5 | 600 | |
| 203.2 | 46.1 | 25.4 | 88.9 | 76.2 | 12.7 | 120 | 132.1 | 82.5 | 16 | 182 | 55.5 | 450 | |
| 152.4 | 38.1 | 22.2 | 76.2 | 63.5 | 12.7 | 109 | 112 | 76.2 | 14 | 148.7 | 46.75 | 400 |
 |  |
| Chain no. | Pitch P (mm) | Inner width of inner link b1 (min.) (mm) | Diameter of pin d3 (mm) | Diameter of roller d1 (min.) (mm) | Height of outer sidebar h1 (mm) | Height of inner sidebar h2 (mm) | Thickness of sidebar T (mm) | Length of pin L (mm) | Hole distance of attached plate f (mm) | Hole diameter of attached plate d4(mm) | Tensile strength (KN) |
| 228.6 | 38 | 32.5 | 98 | 75 | 80 | 16 | 130 | 97 | 8 | 900 |
